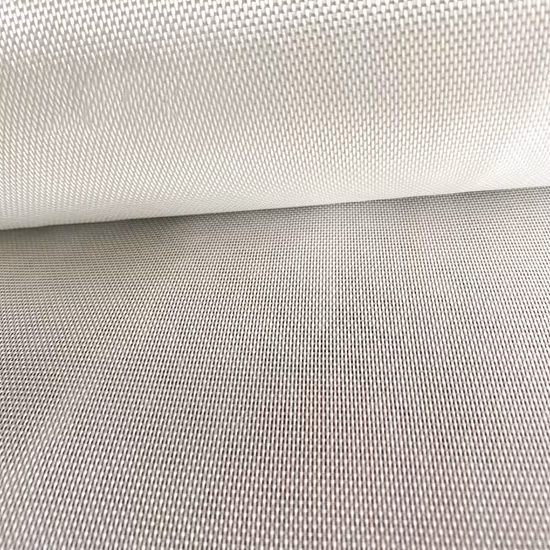

3M™ Nextel™ 610 Woven Fabrics DF-11

High Strength Alumina Ceramic Fiber Fabric for Extreme Temperature Applications

3M™ Nextel™ 610 Woven Fabrics DF-11 are advanced high-temperature ceramic fiber textiles engineered for extreme thermal and structural environments where exceptional mechanical strength, oxidation resistance, and long-term thermal stability are required.

Manufactured under the high-performance Nextel ceramic fiber product family, DF-11 woven fabrics are widely used in aerospace thermal protection systems, ceramic matrix composites (CMC), turbine engines, and high-temperature industrial insulation applications.

These fabrics are woven from Nextel 610 continuous filament yarn composed of high-purity alpha-alumina ceramic fibers (~99% Al2O3), delivering extremely high tensile strength, superior creep resistance, and excellent oxidation stability at elevated temperatures.

Product Overview

Nextel 610 DF-11 woven fabrics provide exceptional structural integrity and thermal stability in oxidizing and high-temperature environments. The woven ceramic textile construction ensures excellent dimensional stability, durability, and compatibility with advanced ceramic matrix composites.

Compared with Nextel 312 and Nextel 440 fabrics, Nextel 610 fabrics offer significantly higher tensile strength, improved creep resistance, and superior long-term performance at extreme temperatures, making them ideal for aerospace thermal protection systems and structural reinforcement applications.

Key Features

High-purity alpha-alumina ceramic fiber composition
Extremely high tensile strength and creep resistance
Continuous operating temperature up to ~1200–1400°C
Excellent oxidation and chemical resistance
Outstanding high-temperature mechanical stability
Non-combustible and flame resistant
Compatible with ceramic matrix composite (CMC) manufacturing

Technical Properties

Material	Nextel 610 Ceramic Fiber
Fiber Composition	~99% Alpha Alumina (Al2O3)
Fabric Construction	Woven Fabric
Fabric Style	DF-11
Typical Weave	Plain Weave
Continuous Operating Temperature	~1200–1400°C
Fiber Density	~3.9 g/cm³
Filament Diameter	~10 – 12 µm
Fabric Thickness	~0.35 – 0.50 mm
Color	White / Off-White

Values are typical and may vary depending on manufacturing specifications.

Typical Applications

Aerospace thermal protection systems (TPS)
Ceramic matrix composite reinforcement
Aircraft and spacecraft heat shield systems
Gas turbine engine insulation and components
High-temperature industrial furnace insulation
Rocket propulsion and aerospace insulation systems
Structural ceramic composite components

Advantages

Extremely high tensile strength compared with most ceramic textiles
Superior creep resistance at elevated temperatures
Excellent oxidation stability in harsh environments
Reliable performance in extreme aerospace and turbine environments
Ideal reinforcement material for ceramic matrix composites

FAQs

It is mainly used in aerospace thermal protection systems, ceramic matrix composites, turbine engine insulation, and high-temperature structural applications.

The fabric can typically operate in continuous temperatures between 1200°C and 1400°C, depending on application conditions.

Nextel 610 fibers consist of approximately 99% alpha-alumina ceramic material, providing exceptional strength and thermal stability.

Yes, it is widely used as reinforcement in ceramic matrix composites for aerospace engines, heat shields, and high-temperature structures.

Nextel 610 provides much higher tensile strength, improved creep resistance, and superior performance in extreme temperatures, making it suitable for advanced aerospace applications.
