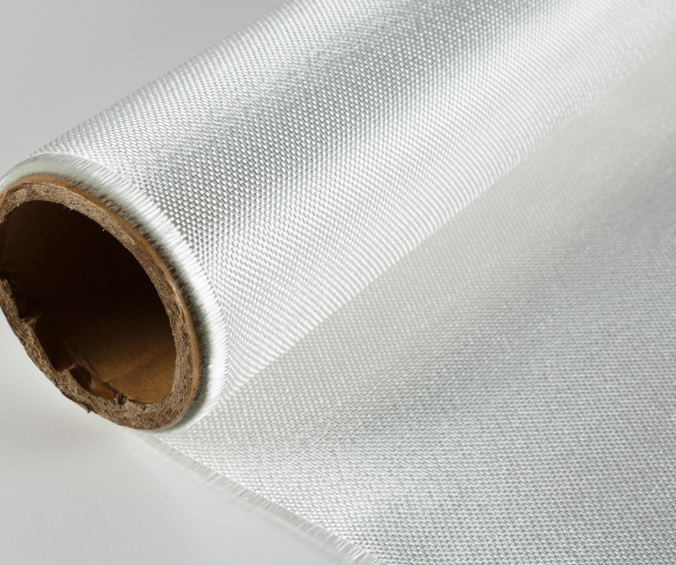

3M™ Nextel™ 610 Woven Fabrics DF-19

Ultra High Temperature Alumina Ceramic Fiber Fabric for Extreme Applications

3M™ Nextel™ 610 Woven Fabrics DF-19 are advanced ceramic fiber textiles designed for extreme high-temperature environments where superior mechanical strength, oxidation resistance, and long-term thermal stability are essential.

Manufactured using Nextel™ 610 continuous filament yarn composed of approximately 99% high-purity alpha-alumina (Al2O3), these fabrics deliver exceptional tensile strength, excellent creep resistance, and outstanding thermal stability at elevated temperatures. They are widely used in aerospace thermal protection systems, turbine engines, ceramic matrix composites, and high-temperature industrial insulation.

Product Overview

Nextel™ 610 DF-19 woven fabrics provide excellent structural integrity and thermal resistance in extreme environments. The woven ceramic textile construction ensures high dimensional stability, durability, and compatibility with ceramic matrix composite manufacturing processes.

Compared with Nextel™ 312 and Nextel™ 440 ceramic fabrics, Nextel™ 610 fabrics deliver significantly higher tensile strength and improved high-temperature performance, making them ideal for aerospace insulation, turbine components, and advanced structural ceramic composites.

Key Features

High-purity alpha-alumina ceramic fiber composition (~99% Al2O3)
Exceptional tensile strength and mechanical stability
Continuous operating temperature up to 1200–1400°C
Excellent oxidation and chemical resistance
Superior creep resistance at elevated temperatures
Non-combustible and flame resistant
Ideal for ceramic matrix composite reinforcement

Technical Properties

Property	Typical Value
Material	Nextel 610 Ceramic Fiber
Fiber Composition	~99% Alpha Alumina (Al2O3)
Fabric Construction	Woven Fabric
Fabric Style	DF-19
Typical Weave	Plain Weave
Continuous Operating Temperature	~1200 – 1400°C
Fiber Density	~3.9 g/cm³
Filament Diameter	~10 – 12 µm
Fabric Thickness	~0.45 – 0.60 mm
Color	White / Off-White

Typical Applications

Aerospace thermal protection systems (TPS)
Ceramic matrix composite reinforcement
Aircraft and spacecraft heat shield systems
Gas turbine engine insulation
High-temperature industrial furnace insulation
Rocket propulsion thermal protection systems
Structural ceramic composite components

Advantages

Extremely high tensile strength compared with conventional ceramic textiles
Excellent creep resistance at high temperatures
Outstanding oxidation stability in harsh environments
Reliable performance in aerospace and turbine applications
Ideal reinforcement for advanced ceramic matrix composites

FAQs

It is used in aerospace thermal protection systems, turbine insulation, ceramic matrix composites, and high-temperature structural applications.

It can typically operate continuously between 1200°C and 1400°C, depending on application conditions.

They consist of approximately 99% alpha-alumina, providing exceptional strength and superior thermal stability.

Yes, it is widely used in aircraft engines, spacecraft heat shields, and high-temperature composite structures.

Yes, it is commonly used as reinforcement in ceramic matrix composites (CMC) for aerospace and industrial applications.
