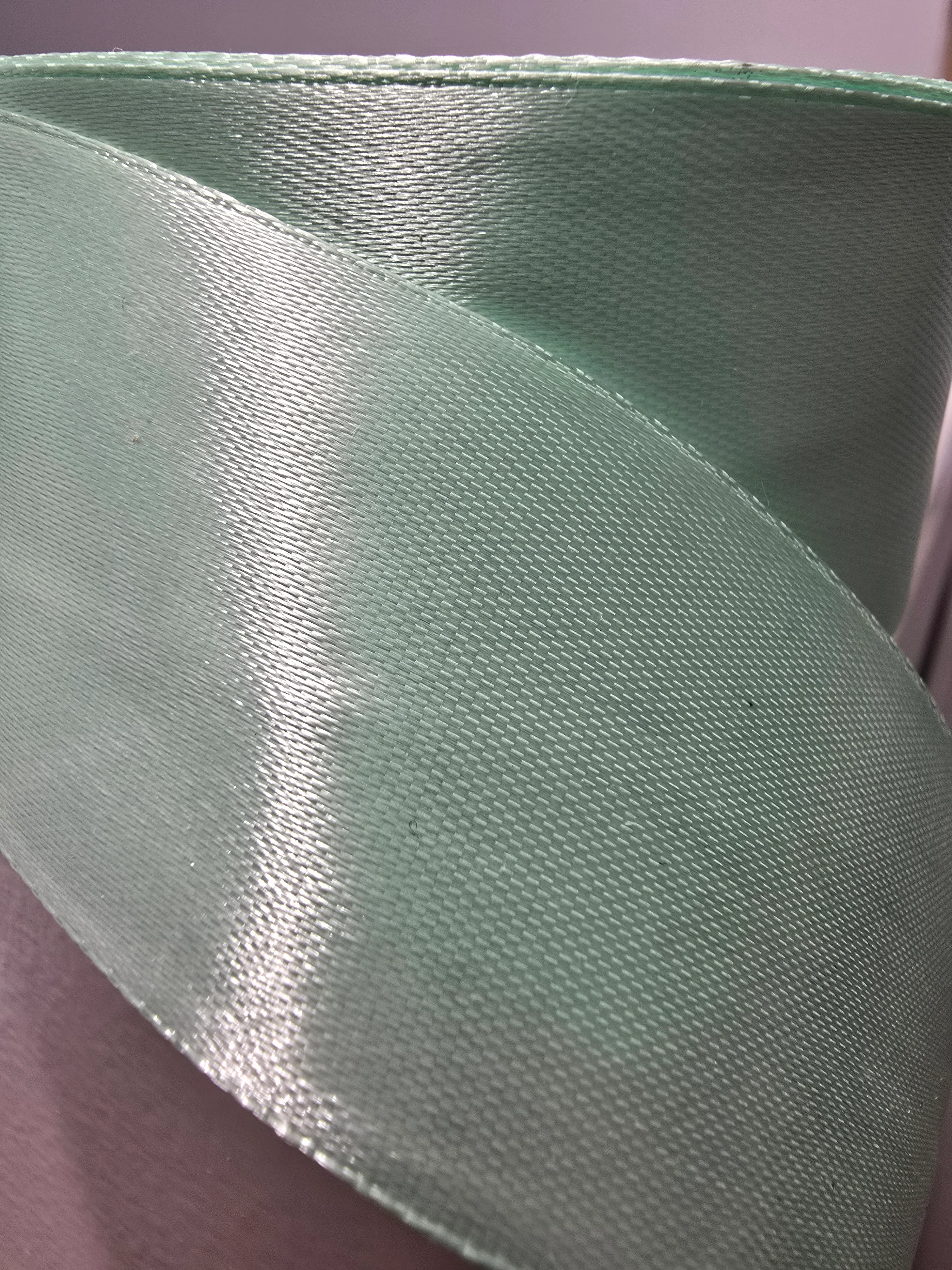

3M™ Nextel™ 720 Woven Fabrics EF-20
High Temperature Mullite Ceramic Fiber Fabric for Aerospace & Industrial Insulation
3M™ Nextel™ 720 Woven Fabrics EF-20 are advanced high-temperature ceramic fiber textiles engineered for extreme thermal environments where exceptional creep resistance, oxidation stability, and long-term durability are essential.
Manufactured as part of the high-performance Nextel ceramic fiber family, EF-20 woven fabrics are widely used in aerospace thermal protection systems, turbine engine insulation, ceramic matrix composites (CMC), and high-temperature industrial insulation applications.
These fabrics are produced using Nextel 720 continuous filament yarn, composed primarily of mullite ceramic fibers consisting of approximately 85% alumina (Al2O3) and 15% silica (SiO2).
This mullite-based composition provides excellent thermal stability, superior creep resistance, and outstanding oxidation resistance at elevated temperatures, making EF-20 fabrics suitable for heat shields, thermal barriers, and high-temperature structural composite reinforcement.
With continuous operating capability up to 1200–1400°C, these fabrics are designed for critical aerospace, defense, and industrial environments where traditional materials cannot withstand extreme heat conditions.
Product Overview
Nextel 720 EF-20 woven fabrics offer excellent thermal durability and mechanical stability in extreme high-temperature environments.
The woven ceramic textile construction provides superior dimensional stability, durability, and compatibility with advanced ceramic matrix composite manufacturing processes.
Compared with Nextel 312 and Nextel 440 fabrics, Nextel 720 fabrics deliver better long-term thermal stability and improved creep resistance, making them ideal for high-temperature aerospace structures and advanced insulation systems.
Key Features
- Mullite-based ceramic fiber composition (Alumina–Silica)
- Excellent long-term thermal stability
- Continuous operating temperature up to 1200–1400°C
- Superior oxidation and chemical resistance
- Outstanding creep resistance at high temperatures
- Non-combustible and flame resistant
- Ideal reinforcement for ceramic matrix composites
Technical Properties of Nextel 720 EF-20
| Property | Typical Value |
|---|---|
| Material | Nextel 720 Ceramic Fiber |
| Fiber Composition | Mullite (~85% Al2O3 / ~15% SiO2) |
| Fabric Construction | Woven Fabric |
| Fabric Style | EF-20 |
| Weave Type | Plain Weave |
| Operating Temperature | ~1200 – 1400°C |
| Fiber Density | ~3.4 g/cm³ |
| Filament Diameter | ~10 – 12 µm |
| Fabric Thickness | ~0.50 – 0.70 mm |
| Color | White / Off-White |
Values are typical and may vary depending on manufacturing specifications.
Typical Applications
- Aerospace thermal protection systems (TPS)
- Ceramic matrix composite reinforcement
- Aircraft and spacecraft heat shield systems
- Gas turbine engine insulation
- High-temperature industrial furnace insulation
- Rocket propulsion insulation systems
- Structural ceramic composite materials
Advantages of Using Nextel 720 EF-20
- Excellent creep resistance for long-term exposure
- Superior thermal stability in extreme heat environments
- Outstanding oxidation resistance
- Reliable performance in aerospace and turbine applications
- Ideal reinforcement for advanced ceramic matrix composites
